Docs


Use the image shortcode to display a responsive image with an optional aspect ratio.
Overview   Aspect Ratio   Color Mode   Figures   Vector Images   DAM Images   Cropped Images   Styling   Arguments

Overview

Use the image shortcode to display a responsive image with an optional aspect ratio. The source link can refer to either an image available in the /assets/img folder of your site or a public web location. The shortcode renders the image as a so-called image set  to optimize the image for different screen sizes and resolutions.

Behind the scenes, Hugo renders the images in WebP format and stores them in a local folder (resources or public). The images are processed using the quality setting specified in the [imaging] section of the main config file  (defaults to 75). Supported image types are .png, .jpeg, .gif, .tiff, .bmp, and .webp. A fallback image of type .jpeg is provided for older browsers.

Aspect Ratio

As an example, the following shortcodes display a centered image with various aspect ratios.

Set the ratio to 1x1 for a square aspect ratio.

markdown
{{< image src="img/placeholder.png" ratio="1x1" wrapper="col-6 mx-auto" >}}

Set the ratio to 3x2 for a landscape aspect ratio.

markdown
{{< image src="img/placeholder.png" ratio="3x2" wrapper="col-6 mx-auto" >}}

Set the ratio to 4x3 for a landscape aspect ratio.

markdown
{{< image src="img/placeholder.png" ratio="4x3" wrapper="col-6 mx-auto" >}}

Set the ratio to 16x9 for a landscape aspect ratio.

markdown
{{< image src="img/placeholder.png" ratio="16x9" wrapper="col-6 mx-auto" >}}

Set the ratio to 21x9 for a landscape aspect ratio.

markdown
{{< image src="img/placeholder.png" ratio="21x9" wrapper="col-6 mx-auto" >}}

Omit the ratio to keep the original aspect ratio.

markdown
{{< image src="img/placeholder.png" wrapper="col-6 mx-auto" >}}

Color Mode

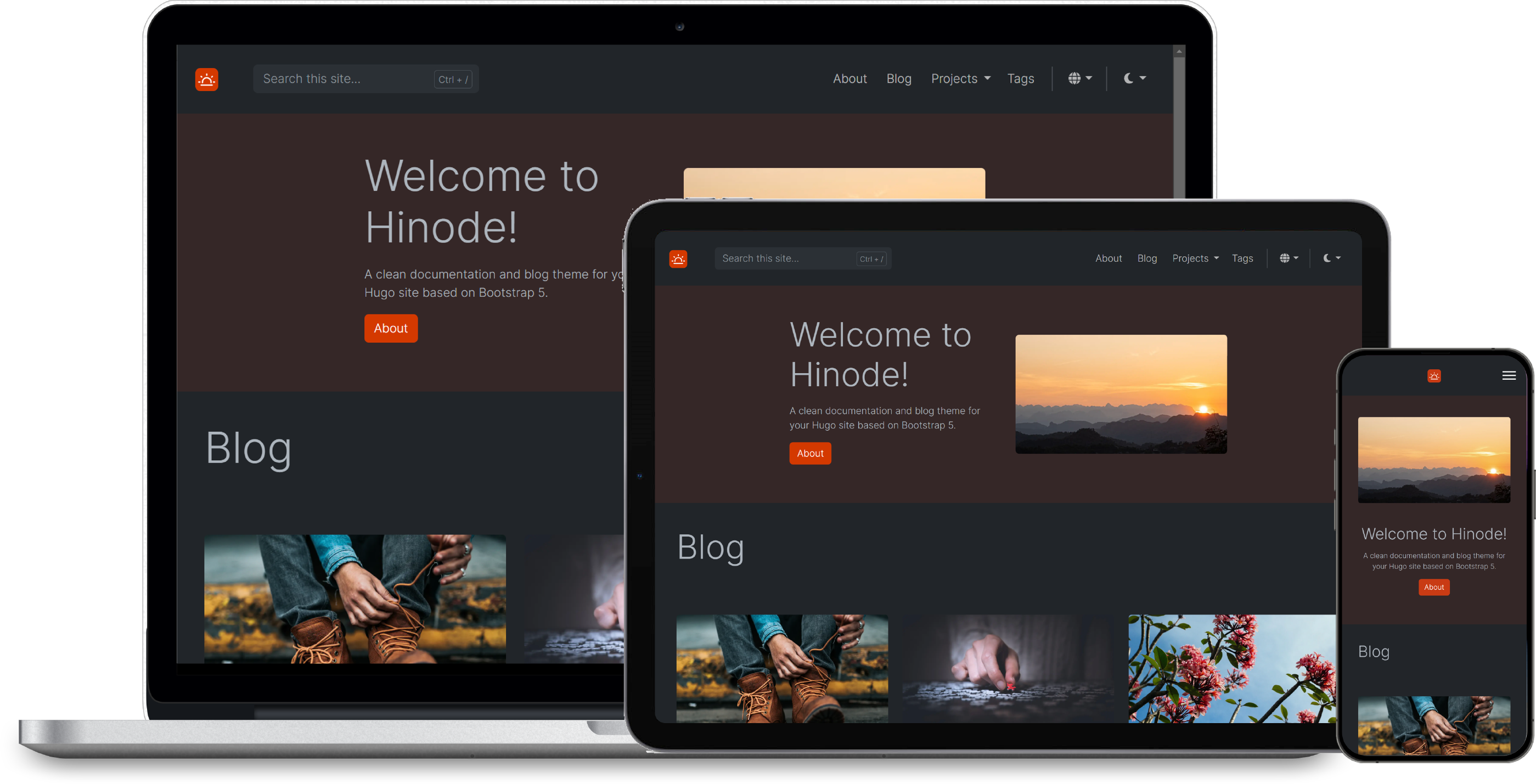

Set mode to true to use an image that is color-mode aware. The shortcode processes two images behind the scenes, being img/responsive-light.png and img/responsive-dark.png. Only the image that matches the current color mode is shown.

markdown
{{< image src="img/responsive.png" mode="true" >}}

Figures

Add a caption to transform the image into a figure with caption.

Figure Caption
Figure Caption
markdown
{{< image src="img/placeholder.png" wrapper="col-6 mx-auto" caption="Figure caption" >}}

Vector Images

The shortcode supports vector images of type .svg too. The shortcode supports the regular arguments, however, vector images are contained instead of cropped when the ratio is set. The next example shows a color-mode-aware vector image. The background is set to a contrasting color to illustrate the ratio behavior.

  Important

Since release v0.26.3  , vector images stored in the site’s assets folder are embedded as inline vector images. Vector images stored in the static folder are kept as separate files.

markdown
{{< image src="/img/logo_var.svg#logo" class="img-fluid w-50" wrapper="text-center" >}}

DAM Images

Hinode supports Cloudinary  , ImageKit.io  , and Imgix  as Digital Asset Manager (DAM). You can configure these managers in your site parameters. Check out the DAM configuration  for more details.

Cloudinary Image
Cloudinary Image
ImageKit.io Image
ImageKit.io Image
Imgix Image
Imgix Image
markdown
{{< image src="https://res.cloudinary.com/demo/image/upload/dog.webp"
    ratio="21x9" caption="Cloudinary image" wrapper="col-12 col-md-8 mx-auto" >}}

{{< image src="https://ik.imagekit.io/demo/default-image.jpg"
    ratio="21x9" caption="ImageKit.io image" wrapper="col-12 col-md-8 mx-auto" >}}

{{< image src="https://assets.imgix.net/examples/bluehat.jpg"
    ratio="21x9" caption="imgix image" wrapper="col-12 col-md-8 mx-auto" >}}

Cropped Images

By default, images use Smart croppping. You can refine the image crop by setting the anchor. The following example shows this behavior as part of a Card Group.

TopLeft anchor
Top anchor
TopRight anchor
Left anchor
Center anchor
Right anchor
BottomLeft anchor
Bottom anchor
BottomRight anchor
markdown
{{< card-group padding="3" gutter="3" cols=3 ratio="16x9" >}}
    {{< card thumbnail="https://res.cloudinary.com/demo/image/upload/dog.webp" anchor="TopLeft" >}}
        `TopLeft` anchor
    {{< /card >}}
    {{< card thumbnail="https://res.cloudinary.com/demo/image/upload/dog.webp" anchor="Top" >}}
        `Top` anchor
    {{< /card >}}
    {{< card thumbnail="https://res.cloudinary.com/demo/image/upload/dog.webp" anchor="TopRight" >}}
        `TopRight` anchor
    {{< /card >}}
    {{< card thumbnail="https://res.cloudinary.com/demo/image/upload/dog.webp" ratio="1x1" anchor="Left" >}}
        `Left` anchor
    {{< /card >}}
    {{< card thumbnail="https://res.cloudinary.com/demo/image/upload/dog.webp" ratio="1x1" anchor="Center" >}}
        `Center` anchor
    {{< /card >}}
    {{< card thumbnail="https://res.cloudinary.com/demo/image/upload/dog.webp" ratio="1x1" anchor="Right" >}}
        `Right` anchor
    {{< /card >}}
    {{< card thumbnail="https://res.cloudinary.com/demo/image/upload/dog.webp" anchor="BottomLeft" >}}
        `BottomLeft` anchor
    {{< /card >}}
    {{< card thumbnail="https://res.cloudinary.com/demo/image/upload/dog.webp" anchor="Bottom" >}}
        `Bottom` anchor
    {{< /card >}}
    {{< card thumbnail="https://res.cloudinary.com/demo/image/upload/dog.webp" anchor="BottomRight" >}}
        `BottomRight` anchor
    {{< /card >}}
{{< /card-group >}}

Styling

The file assets/scss/components/_img.scss defines the Hinode-specific styling of the img shortcode.

.img-wrap {
    overflow: hidden;
    position: relative;
}

.img-wrap img {
    height: 100%;
    width: 100%;
    object-fit: cover;
}

.card-img-h100 {
    width: auto;
    height: 100%;
    object-fit: cover;
}

.mirrorred {
    -webkit-transform: scaleX(-1);
    transform: scaleX(-1);
}

.background-img {
    --overlay-offset: #{$overlay-offset};

    height: calc(100vh - var(--overlay-offset));
    width: 100vw;
    object-fit: cover;
}

.figure-caption {
    margin-left: #{$theme-border-radius};
}

Arguments

The shortcode supports the following arguments:

Name Type Required Default Comment
anchor select v0.24.22      Anchor of the image’s crop box, defaults to anchor value set in imaging section of the site configuration (usually Smart). Supported values: [TopLeft, Top, TopRight, Left, Center, Right, BottomLeft, Bottom, BottomRight, Smart].
caption string Caption of the carousel slide or illustration.
class string Class attributes of the element. It supports Bootstrap attributes to modify the styling of the element.
figclass string v0.23.0      Class attribute of the figure caption, e.g. px-4.
image-height int v1.0.0      Height of the image in pixels.
image-width int v1.0.0      Width of the image in pixels.
loading select eager v0.21.0      Image loading behavior. The loading of lazily loaded images is deferred until the image is within scrolling range of the viewport. This should reduce the initial loading time of the website. It is recommended to lazily load only those images that are below the page fold. Supported values: [lazy, eager].
mode bool Flag indicating if the media asset should support color modes. If set, the element searches for images having a matching color-mode suffix such as -light or -dark.
plain bool v0.24.0      Flag to indicate if the current element should be rendered as plain. For image, this implies no transformations are applied. For navbar items, this ignores any children.
portrait bool v0.18.3      Flag to adjust the image ratio from landscape to portrait. The image itself is not rotated, only the crop area is adjusted. Not applicable to vector graphics.
ratio select Ratio of the media asset. When the asset is an image, it is resized and cropped (not applicable to vector graphics). For video assets, the padding of the embedded frame is adjusted. When set to auto, the original aspect ratio is used. Supported values: [1x1, 3x2, 4x3, 16x9, 21x9, auto].
src string Path or url of the image, e.g. img/example.jpg. Images with multiple color modes are expected to have a basename that ends with either -dark or -light.
title string, hstring.RenderedString, hstring.HTML, template.HTML Title of the element. If the element references a (local) page, the title overrides the referenced page’s title.
url string, template.URL v1.0.0      Use src instead. Path or url of the image, e.g. img/example.jpg. Images with multiple color modes are expected to have a basename that ends with either -dark or -light.
wrapper string v0.18.3      Class attribute of the element’s wrapper. It supports Bootstrap attributes to modify the styling of the element. Icons include the fa-wrapper and fa-fluid attributes by default.
Name Type Required Default
anchor select
v0.24.22      Anchor of the image’s crop box, defaults to anchor value set in imaging section of the site configuration (usually Smart). Supported values: [TopLeft, Top, TopRight, Left, Center, Right, BottomLeft, Bottom, BottomRight, Smart].
caption string
Caption of the carousel slide or illustration.
class string
Class attributes of the element. It supports Bootstrap attributes to modify the styling of the element.
figclass string
v0.23.0      Class attribute of the figure caption, e.g. px-4.
image-height int
v1.0.0      Height of the image in pixels.
image-width int
v1.0.0      Width of the image in pixels.
loading select eager
v0.21.0      Image loading behavior. The loading of lazily loaded images is deferred until the image is within scrolling range of the viewport. This should reduce the initial loading time of the website. It is recommended to lazily load only those images that are below the page fold. Supported values: [lazy, eager].
mode bool
Flag indicating if the media asset should support color modes. If set, the element searches for images having a matching color-mode suffix such as -light or -dark.
plain bool
v0.24.0      Flag to indicate if the current element should be rendered as plain. For image, this implies no transformations are applied. For navbar items, this ignores any children.
portrait bool
v0.18.3      Flag to adjust the image ratio from landscape to portrait. The image itself is not rotated, only the crop area is adjusted. Not applicable to vector graphics.
ratio select
Ratio of the media asset. When the asset is an image, it is resized and cropped (not applicable to vector graphics). For video assets, the padding of the embedded frame is adjusted. When set to auto, the original aspect ratio is used. Supported values: [1x1, 3x2, 4x3, 16x9, 21x9, auto].
src string
Path or url of the image, e.g. img/example.jpg. Images with multiple color modes are expected to have a basename that ends with either -dark or -light.
title string, hstring.RenderedString, hstring.HTML, template.HTML
Title of the element. If the element references a (local) page, the title overrides the referenced page’s title.
url string, template.URL
v1.0.0      Use src instead. Path or url of the image, e.g. img/example.jpg. Images with multiple color modes are expected to have a basename that ends with either -dark or -light.
wrapper string
v0.18.3      Class attribute of the element’s wrapper. It supports Bootstrap attributes to modify the styling of the element. Icons include the fa-wrapper and fa-fluid attributes by default.
